Extended Shader Nodes¶

1. Filter-Domain Nodes¶

Filter Object Info¶

Entry¶

Add > Input > Filter Object Info

Available only in the Filter domain.

Purpose¶

Reads the world-space transform and viewport display color of a chosen object, making it easier to drive full-screen filters from scene helpers or controller objects.

Node Setting¶

Object

Outputs¶

Location
Rotation
Scale
Color

Notes¶

Location: world-space location of the chosen object
Rotation: world-space Euler rotation in radians
Scale: world-space scale of the chosen object
Color: viewport display color of the chosen object
If no object is assigned, the node falls back to 0 for location / rotation / color and 1 for scale

Filter Mask¶

Entry¶

Add > Input > Filter Mask

Available only in the Filter domain.

Purpose¶

Uses Eevee Cryptomatte object information to build fast object masks for filter materials.

Output¶

Mask

Panel Options¶

Mode
Single Object
Object List
Collection

Notes¶

Single Object is useful for one controller object
Object List is useful when a manual object set is needed, and can be filled from the current selection
Collection is useful when the mask should follow a collection hierarchy
The output is a 0-1 float mask that can be used with Mix, thresholds, AOV writing, or any other filter logic
Only renderable geometry objects are supported

Scene Color¶

Entry¶

Add > Input > Scene Color

Available only in the Filter domain.

Purpose¶

Reads the current Eevee scene buffer. The Source can be switched in the node panel:

Color
Depth
Normal
Position

Inputs / Outputs¶

Input: Vector
Outputs: Color, Alpha

Notes¶

Color: read the resolved scene color
Depth: read linear scene depth
Normal: read scene normals
Position: read the world-space position pass
If Vector is not connected, the node samples with the Window output of the Texture Coordinate node
When Vector is connected, Color / Depth / Normal / Position use the same screen-UV offset sampling semantics; Position reconstructs the world position for the offset pixel from its depth and screen coordinate

2. General Eevee Utility Nodes¶

Render Info¶

Entry¶

Add > Input > Render Info

Outputs¶

Frag Coord
Width
Height

Purpose¶

Provides the coordinate and pixel size of the current Eevee render window.

Notes¶

Frag Coord.xy is normalized screen UV in 0-1
Frag Coord.z is the current fragment depth
Width / Height are the current render-region pixel dimensions

Scene Time¶

Entry¶

Add > Input > Scene Time

Input¶

Scale

Outputs¶

Frame
Seconds
Timeline
Scaled Frame

Purpose¶

Provides time-related values from the current scene.

Screen Derivative¶

Entry¶

Add > Utilities > Math > Screen Derivative

Feature¶

Gets the difference between neighboring pixels in screen space:

DDX
DDY
DDXY

where DDXY means DDX + DDY.

Portal In / Portal Out¶

Entry¶

Add > Layout > Portal In
Add > Layout > Portal Out

Feature Description¶

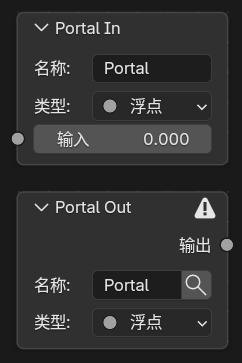

These are “portal” nodes used to organize node links.

Notes¶

Portal In: stores a named, typed value in the current node tree
Portal Out: retrieves that value later by name inside the same node tree
Creating a new Portal In generates a unique name automatically
Portal Out includes a magnifier button that jumps to the matching Portal In
Portals are only recognized inside the same shader node tree and do not automatically pass through node groups

3. Eevee Object Material Nodes¶

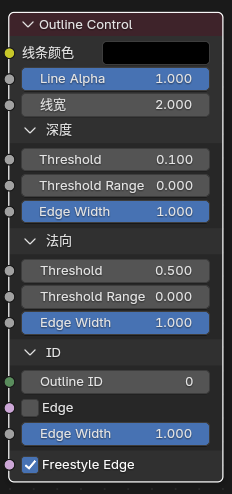

Outline Control¶

Entry¶

Add > Output > Outline Control

Available in Eevee object materials and NPR Tree.

Inputs¶

Line Color
Line Alpha
Line Width
Depth Threshold
Normal Threshold
Outline ID

Purpose¶

Writes outline parameters for Eevee's built-in screen-space outline pass.

Basic Workflow¶

Add Outline Control to a material that should contribute outlines.
Use Line Color, Line Alpha, and Line Width to control the visible stroke.
Use Depth Threshold and Normal Threshold to tune silhouette edges versus internal edge detection.
Keep Render Properties > Outline enabled globally.
Enable View Layer Properties > Passes > Data > Outline when the outline result should be available as a separate pass.

Notes¶

This is an auxiliary output node; it does not replace Material Output
Line Alpha is multiplied with Line Color.a, and together they determine final opacity
If Line Width <= 0 or the final alpha resolves to 0, nothing is written
Outline ID = 0 uses automatic grouping from the object resource ID
Outline ID > 0 can be used to force multiple objects or surfaces into the same outline group
Depth Threshold is more related to depth discontinuity edges, while Normal Threshold is more related to internal edges from normal variation
Objects in Holdout collections no longer write Outline Control parameters and no longer contribute Freestyle / marked-edge outline seeds

Suggested Images¶

images/placeholder_outline_control.png
Suggested content: the Outline Control node with a representative parameter setup

Render Texture¶

Entry¶

Add > Texture > Render Texture

Purpose¶

Reads a Render Textures entry configured in the scene.

Inputs / Outputs¶

Input: Vector
Outputs: Color, Alpha

Screenspace Info¶

Entry¶

Add > Input > Screenspace Info

Inputs / Outputs¶

Input: View Position
Outputs: Scene Color, Scene Depth

Purpose¶

Reads color or depth from the current render buffer.

Usage Notes¶

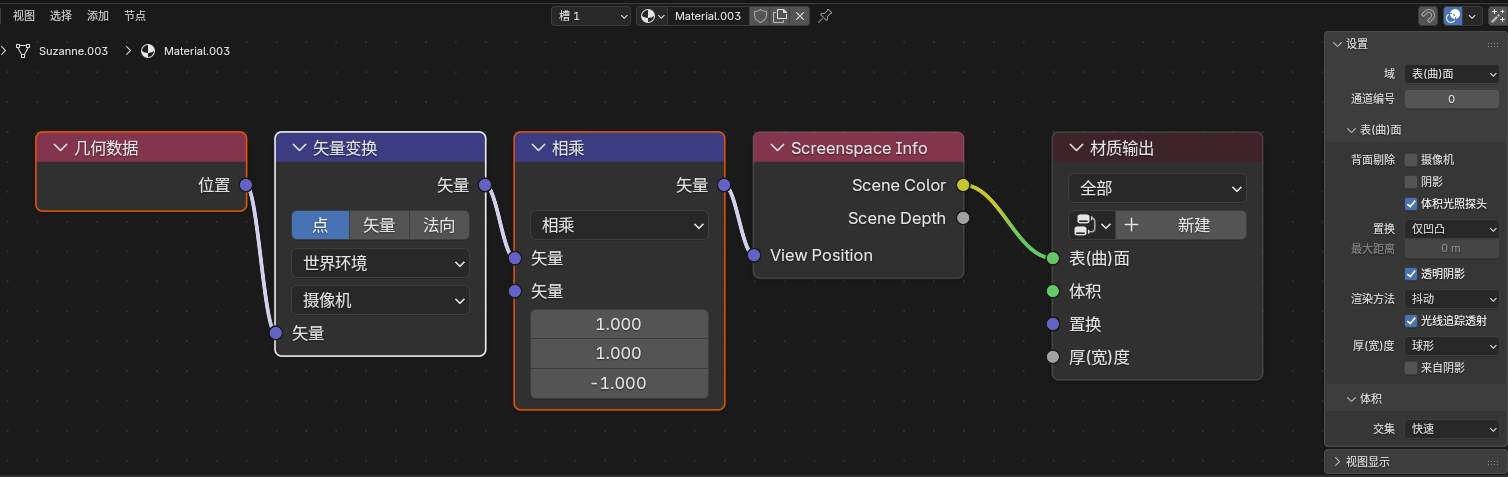

Raytracing must be enabled in render settings
Material Render Method must be set to Dithered
Raytraced Transmission must be enabled
The default View Position input transforms the current position into camera space and then flips the Z axis

World Environment¶

Entry¶

Add > Input > World Environment

Inputs / Outputs¶

Input: Direction
Output: Color

Purpose¶

Directly samples the Eevee world environment color without depending on whether geometry exists behind the screen.

Notes¶

If Direction is not connected, the current surface view direction is used
If Direction is connected, the world environment is sampled in that direction
The result is closer to Eevee environment / probe lighting than to a screen-space buffer

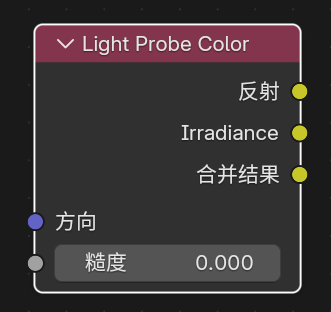

Light Probe Color¶

Entry¶

Add > Input > Light Probe Color

Inputs / Outputs¶

Input: Direction
Outputs: Reflection, Irradiance, Combined

Purpose¶

Reads the currently available Eevee lighting-probe result directly, splitting it into reflection, irradiance, and combined outputs.

World To Tangent¶

Entry¶

Add > Utilities > Vector > World To Tangent

Inputs / Outputs¶

Input: Vector
Output: Vector

Purpose¶

Converts a world-space direction vector into the tangent space of the current surface.

Notes¶

A UV Map can be chosen in the node panel, and the tangent of that UV is used as the basis
This is useful for anisotropic direction control, tangent-space flow, and local scan-direction effects

GLSL Function¶

Entry¶

Add > Script > GLSL Function

Available in both Eevee object materials and NPR Tree.

Purpose¶

Injects a user-authored GLSL function into the current Eevee / NPR material compile path. This is useful for custom math nodes, procedural textures, SDF logic, screen-space effects, and porting parts of external GLSL / HLSL code.

Basic Workflow¶

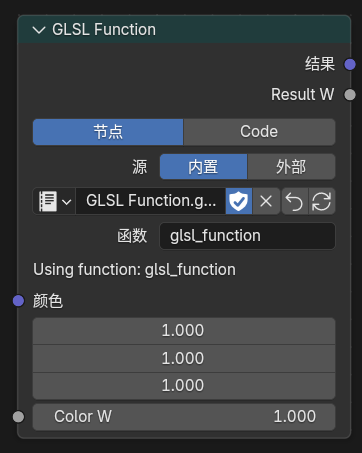

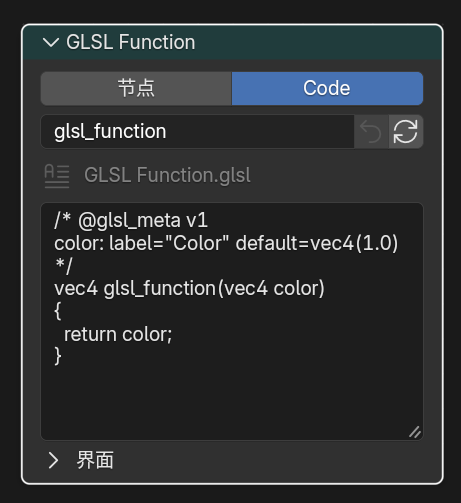

Prepare a GLSL function in the Text Editor or point the node to an external .glsl file.
Add a GLSL Function node.
Choose the source and the target function in the node panel.
Refresh the node after editing the source.
Explicitly select the exported function name in Function.

Example Project¶

GLSL Function example .blend project: Google Drive
This file is intended as a ready-made reference scene for the current GLSL Function workflow and node setup.

Supported Boundary Types¶

Input parameters: float, int, bool, vec2, vec3, vec4, sampler2D
Output parameters: out float, out int, out bool, out vec2, out vec3, out vec4
Return values: void, float, int, bool, vec2, vec3, vec4

Important Notes¶

Function is not auto-selected and must be chosen explicitly
sampler2D appears as a Closure input
sampler2D can be connected to Image to Closure or a compatible Closure Output
Closure Output -> sampler2D currently guarantees only the direct texture(tex, uv) path
If the function depends on textureLod, textureGrad, textureSize, or texelFetch, prefer driving it with Image to Closure
@glsl_meta supports default, min, max, hide_value, subtype, label, description, and one-level panel groups
Supported subtype values for float: none, unsigned, percentage, factor, mass, angle, time, time_absolute, distance, wavelength
Supported subtype values for vec2 / vec3 / vec4: none, factor, percentage, translation, direction, velocity, acceleration, euler, xyz
subtype=color is additionally supported for vec3 and vec4
@glsl_meta default= also accepts expressions such as glsl_position(), normalize(glsl_normal()), or glsl_ambient_lighting()
When @glsl_meta default= uses an expression, an unconnected socket evaluates that expression, while a connected socket uses the link value and hides the static value field automatically
Expression defaults are recommended only for float / vec2 / vec3 / vec4 inputs and should not directly reference other exported parameters
label="..." sets the socket display name in the node UI, supports quoted single-line text with spaces, and does not change the GLSL parameter name or socket identifier
description="..." adds a tooltip description to an input socket and supports quoted single-line text with spaces
@panel "Name" closed=true|false groups following inputs into one-level collapsible panels and must be closed with @end_panel
Panels support one level only; empty param: rows can be used inside a panel for grouping without changing defaults
sampler2D can use label, description, and panel grouping, but does not support default / min / max / hide_value / subtype
Only vec3 / vec4 inputs explicitly marked with subtype=color become color sockets
vec3 + subtype=color enters GLSL as rgb with alpha = 1.0
vec4 + subtype=color keeps full rgba
Refreshing or recompiling the node preserves the w component of vec4 inputs instead of degrading them to vec3 / rgb
Exported boundary types do not currently support mat*, struct, or array
int / bool boundaries are useful for mode switches, enums, and lightgroup_id style parameters
Built-in geometry helpers are available in the function body: glsl_position(), glsl_normal(), glsl_true_normal(), glsl_incoming()
Built-in ambient-light helper: glsl_ambient_lighting()
Built-in direct-light helpers: GLSLLight, glsl_light_count(), glsl_light_get(light_index), glsl_light_shadow(light_index, shading_normal)

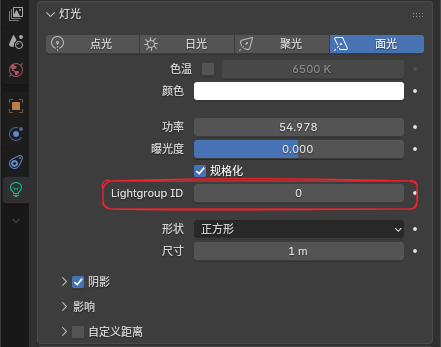

GLSLLight.lightgroup_id maps directly to the light data panel Lightgroup ID
GLSLLight.attenuation is a base attenuation term for custom per-light models; it does not include NdotL, toon ramps, Blinn-Phong, GGX, shadows, or material-side Fresnel / metallic / roughness behavior

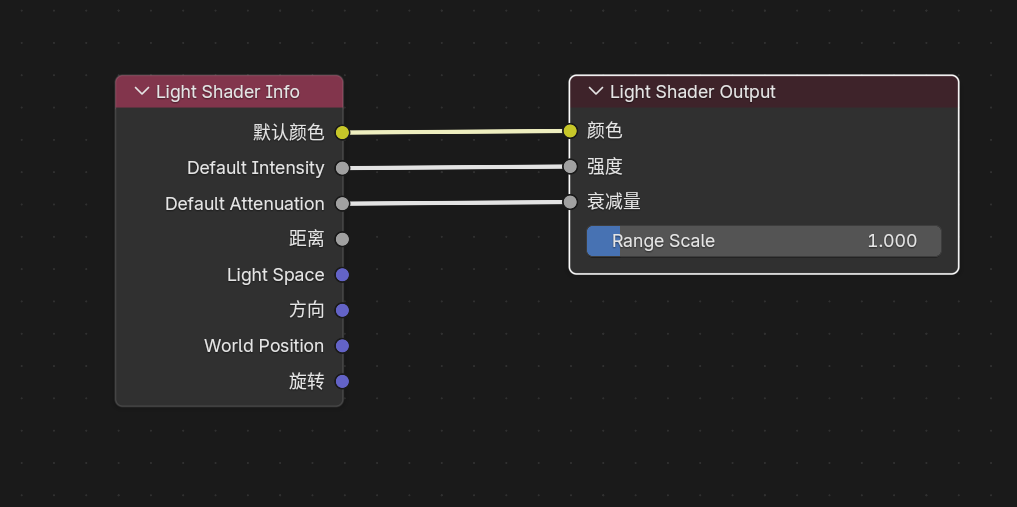

If the light node tree uses Light Shader Output, glsl_light_get(i).diffuse_color, glsl_light_get(i).specular_color, and glsl_light_get(i).attenuation read the Light Shader evaluated color and attenuation
Light Shader Output affects only those color / attenuation fields; type, index, lightgroup_id, vector, position, direction, and distance still come from raw Eevee light data
Without a Light Shader output, GLSLLight keeps the normal Eevee light-access behavior
These direct-light helpers target Eevee object materials and NPR Tree Surface/Fragment paths; Filter, World, volume, probe / indirect lighting are not stable public helper semantics
Recommended diffuse pattern: light.diffuse_color * light.attenuation * max(dot(N, light.vector), 0.0) * glsl_light_shadow(...)
Recommended specular pattern: light.specular_color * light.attenuation * custom_spec_term * glsl_light_shadow(...)

Example: Parameter Meta with Descriptions and Panels¶

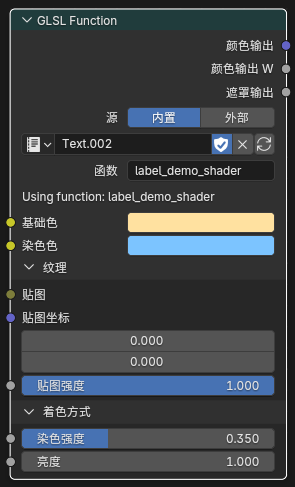

label="..." is shown as the socket name. description="..." is shown as the input socket tooltip. @panel groups many inputs into one-level collapsible panels on the node.

/* @glsl_meta v1
base_color: label="Base Color" default=vec3(1.0) subtype=color description="Base surface color"

@panel Specular closed=true
specular: label="Specular Strength" default=0.5 min=0.0 max=1.0 subtype=factor description="Specular strength"
roughness: label="Roughness" default=0.45 min=0.0 max=1.0 subtype=factor description="Highlight roughness"
@end_panel

@panel Texture closed=true
tex: label="Texture" description="Texture closure used by texture(tex, uv)"
uv: label="Coordinates" default=vec2(0.0) description="Texture coordinates"
@end_panel
*/
vec4 annotated_shader(vec3 base_color, float specular, float roughness, sampler2D tex, vec2 uv)
{
  vec3 tex_color = texture(tex, uv).rgb;
  vec3 color = mix(base_color, tex_color, specular * (1.0 - roughness));
  return vec4(color, 1.0);
}

label and description affect UI only and do not change socket identifiers, default synchronization, or GLSL calls
out parameters support label only; other meta properties are still input-only
sampler2D can use label, description, and panel grouping, but does not support default / min / max / hide_value / subtype
Panels support one level only, cannot be nested, and must be closed explicitly with @end_panel

Example: `mode` Debug Mapping¶

If you want one GLSL Function node to switch between helper outputs with a single mode parameter, this mapping is the current reference:

`mode`	Helper / Field
`0`	`glsl_position()`
`1`	`glsl_normal()`
`2`	`glsl_true_normal()`
`3`	`glsl_incoming()`
`4`	`glsl_ambient_lighting()`
`5`	`glsl_light_count()`
`6`	`light.valid`
`7`	`light.type`
`8`	`light.lightgroup_id`
`9`	`light.vector`
`10`	`light.position`
`11`	`light.direction`
`12`	`light.distance`
`13`	`light.diffuse_color`
`14`	`light.specular_color`
`15`	`light.attenuation`
`16`	`glsl_light_shadow(i, N)`

Example: Filter by `lightgroup_id`¶

You can filter Eevee direct lights inside GLSL Function by reading GLSLLight.lightgroup_id.

Function name suggestion: lightgroup_lambert. This version also demonstrates subtype=color, int / bool defaults, description, min / max, subtype=factor, and @panel:

/* @glsl_meta v1
albedo: default=vec3(1.0) subtype=color description="Diffuse albedo for the selected light group"
target_lightgroup_id: default=0 description="Only lights with this Lightgroup ID are included"

@panel Shading closed=false
use_shadow: default=true description="Apply glsl_light_shadow to selected lights"
shadow_strength: default=1.0 min=0.0 max=1.0 subtype=factor description="Blend from unshadowed to fully shadowed direct light"
ambient_floor: default=0.0 min=0.0 max=1.0 subtype=factor description="Small constant fill after lightgroup filtering"
@end_panel
*/
vec4 lightgroup_lambert(vec3 albedo,
                        int target_lightgroup_id,
                        bool use_shadow,
                        float shadow_strength,
                        float ambient_floor)
{
  vec3 N = normalize(glsl_normal());
  vec3 result = vec3(0.0);
  float shadow_mix = clamp(shadow_strength, 0.0, 1.0);

  for (int i = 0; i < glsl_light_count(); i++) {
    GLSLLight light = glsl_light_get(i);
    if (!light.valid) {
      continue;
    }
    if (light.lightgroup_id != target_lightgroup_id) {
      continue;
    }

    float NdotL = max(dot(N, light.vector), 0.0);
    if (NdotL <= 0.0) {
      continue;
    }

    float shadow = use_shadow ? glsl_light_shadow(i, N) : 1.0;
    shadow = mix(1.0, shadow, shadow_mix);
    result += albedo *
              light.diffuse_color *
              light.attenuation *
              NdotL *
              shadow;
  }

  result += albedo * clamp(ambient_floor, 0.0, 1.0);
  return vec4(result, 1.0);
}

Notes:

target_lightgroup_id maps directly to the light data panel's Lightgroup ID
To exclude one light group instead, change the test to if (light.lightgroup_id == target_lightgroup_id) continue;
use_shadow, shadow_strength, and ambient_floor show common boolean input, factor range, and panel grouping patterns
This filtering only affects the per-light model you write in this function; it does not change Eevee's regular material lighting path

Example: PBR-Style Direct Light + Ambient Light¶

This example shows how the current GLSL Function workflow can combine:

Geometry helpers: glsl_normal(), glsl_true_normal(), glsl_incoming()
Ambient-light helper: glsl_ambient_lighting()
Per-light helpers: glsl_light_count(), glsl_light_get(i), glsl_light_shadow(i, N)

Function name suggestion: pbr_lit. This version groups common surface parameters in the Surface panel and exposes built-in helpers as expression defaults that can still be overridden by connected sockets:

/* @glsl_meta v1
base_color: default=vec3(0.8, 0.72, 0.6) subtype=color description="Base surface albedo"

@panel Surface closed=false
roughness: default=0.45 min=0.04 max=1.0 subtype=factor description="Microfacet roughness"
metallic: default=0.0 min=0.0 max=1.0 subtype=factor description="Metallic blend amount"
ao: default=1.0 min=0.0 max=1.0 subtype=factor description="Ambient occlusion multiplier"
@end_panel

@panel Builtin Helpers closed=true
normal_ws: default=normalize(glsl_normal()) hide_value=true description="Optional world-space shading normal override"
view_ws: default=normalize(glsl_incoming()) hide_value=true description="Optional world-space view direction override"
ambient_light: default=glsl_ambient_lighting() subtype=color hide_value=true description="Optional ambient lighting override"
@end_panel
*/
float saturate1(float x)
{
  return clamp(x, 0.0, 1.0);
}

float pow5(float x)
{
  float x2 = x * x;
  return x2 * x2 * x;
}

vec3 fresnel_schlick(float cos_theta, vec3 F0)
{
  return F0 + (vec3(1.0) - F0) * pow5(1.0 - saturate1(cos_theta));
}

float distribution_ggx(float NdotH, float roughness)
{
  float a = roughness * roughness;
  float a2 = a * a;
  float nh2 = NdotH * NdotH;
  float denom = nh2 * (a2 - 1.0) + 1.0;
  return a2 / max(3.14159265 * denom * denom, 1e-6);
}

float geometry_schlick_ggx(float NdotV, float roughness)
{
  float r = roughness + 1.0;
  float k = (r * r) / 8.0;
  return NdotV / max(NdotV * (1.0 - k) + k, 1e-6);
}

float geometry_smith(float NdotV, float NdotL, float roughness)
{
  return geometry_schlick_ggx(NdotV, roughness) *
         geometry_schlick_ggx(NdotL, roughness);
}

vec4 pbr_lit(vec3 base_color,
             float roughness,
             float metallic,
             float ao,
             vec3 normal_ws,
             vec3 view_ws,
             vec3 ambient_light)
{
  vec3 N = normalize(normal_ws);
  vec3 Ng = normalize(glsl_true_normal());
  vec3 V = normalize(view_ws);

  if (dot(N, Ng) < 0.0) {
    N = Ng;
  }

  roughness = clamp(roughness, 0.04, 1.0);
  metallic = clamp(metallic, 0.0, 1.0);
  ao = clamp(ao, 0.0, 1.0);

  vec3 F0 = mix(vec3(0.04), base_color, metallic);

  vec3 direct_diffuse = vec3(0.0);
  vec3 direct_specular = vec3(0.0);

  for (int i = 0; i < glsl_light_count(); i++) {
    GLSLLight light = glsl_light_get(i);
    vec3 L = normalize(light.vector);
    vec3 H = normalize(V + L);

    float NdotL = saturate1(dot(N, L));
    float NdotV = saturate1(dot(N, V));
    float NdotH = saturate1(dot(N, H));
    float VdotH = saturate1(dot(V, H));

    if (NdotL <= 1e-5 || NdotV <= 1e-5) {
      continue;
    }

    float shadow = glsl_light_shadow(i, N);

    vec3 F = fresnel_schlick(VdotH, F0);
    float D = distribution_ggx(NdotH, roughness);
    float G = geometry_smith(NdotV, NdotL, roughness);

    vec3 specular_brdf = (D * G * F) / max(4.0 * NdotV * NdotL, 1e-5);
    vec3 kd = (vec3(1.0) - F) * (1.0 - metallic);
    vec3 diffuse_brdf = kd * base_color / 3.14159265;

    direct_diffuse += diffuse_brdf *
                      light.diffuse_color *
                      light.attenuation *
                      NdotL *
                      shadow;

    direct_specular += specular_brdf *
                       light.specular_color *
                       light.attenuation *
                       NdotL *
                       shadow;
  }

  vec3 ambient = ambient_light * base_color * (1.0 - metallic) * ao;
  vec3 color = ambient + direct_diffuse + direct_specular;
  return vec4(max(color, vec3(0.0)), 1.0);
}

Notes:

normal_ws, view_ws, and ambient_light use expression defaults; unconnected sockets call the built-in helpers, while connected sockets use the external override
hide_value=true is useful for helper override inputs so the node does not show a misleading static default value

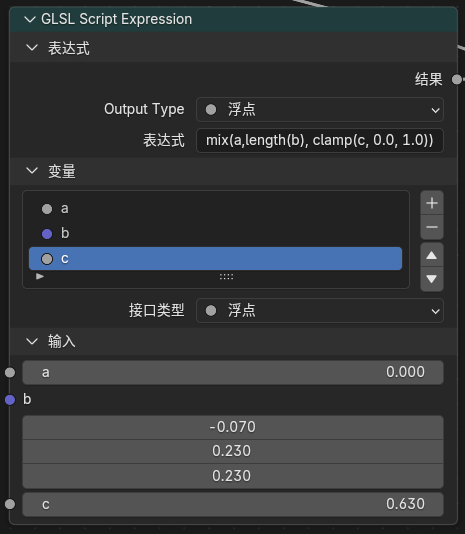

GLSL Script Expression¶

Entry¶

Add > Script > GLSL Script Expression

Available in both Eevee object materials and NPR Tree.

Purpose¶

Evaluates one single-line GLSL expression and publishes it as a Result output. This is useful for simple math, color mixing, vector recomposition, and debugging formulas without creating a separate Text data-block or external .glsl file.

Node Settings¶

Output Type
Float
Vector
Color
Expression: the single GLSL expression assigned to Result
Variables: a manually maintained list of input variables; each variable becomes a node input socket
Each variable can be Float, Vector, or Color

Basic Workflow¶

Add a GLSL Script Expression node.
Set Output Type.
Add variables in the Variables panel, then set each variable name and type.
Reference those variable names directly from Expression.
Connect Result to the downstream node chain.

Example¶

mix(base_color, tint_color, clamp(mask, 0.0, 1.0))

Matching variables:

base_color: Color
tint_color: Color
mask: Float
Output Type: Color

Limits¶

Only one expression is allowed; ;, {}, preprocessor directives, and multi-statement blocks are rejected
Assignment, increment / decrement, control flow, declarations, and comments are rejected
The expression is numeric GLSL only; strings, samplers, texture sampling functions, and image load/store are not supported
GLSL Function helpers such as glsl_position(), glsl_normal(), and glsl_light_get() cannot be called directly
Variable names are normalized to valid GLSL identifiers; reserved words, gl_ prefixes, and internal helper names are avoided automatically
Use GLSL Function instead when a node needs functions, textures, direct-light helpers, sampler2D, or complex control flow

Image to Closure¶

Entry¶

Add > Texture > Image to Closure

Available in both Eevee object materials and NPR Tree.

Output¶

Closure

Purpose¶

Wraps a regular image as a closure-backed source for sampler2D, mainly for feeding GLSL Function(sampler2D) inputs while keeping the same wiring style as procedural Closure Output sources.

Node Settings¶

Interpolation
Extension

Usage Notes¶

This node does not expose a normal image socket; the image is selected directly in the node panel
It is an adapter for sampler2D workflows, not a replacement for Image Texture
Prefer it when a function needs image-resource specific sampling behavior

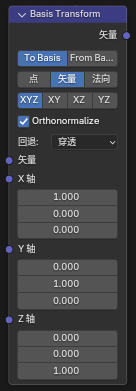

Basis Transform¶

Entry¶

Add > Utilities > Vector > Basis Transform

Purpose¶

Transforms points, vectors, or normals to or from a custom basis defined by Origin + axis inputs.

Inputs / Outputs¶

Inputs: Vector, Origin, X Axis, Y Axis, Z Axis
Output: Vector

Panel Options¶

Direction
To Basis
From Basis
Vector Type
Point
Vector
Normal
Basis Input
XY
XZ
YZ
XYZ
Orthonormalize
Fallback

Notes¶

Point mode uses Origin as the translation reference, while Vector and Normal only transform direction
Basis Input can derive the missing axis from two supplied axes, or use explicit XYZ
Orthonormalize helps stabilize imperfect or non-orthogonal input axes
Useful for local basis projection, procedural texture orientation, anisotropic direction control, and custom normal-space conversion

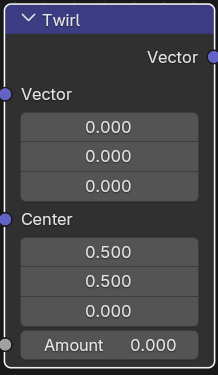

Twirl¶

Entry¶

Add > Utilities > Vector > Twirl

Inputs / Outputs¶

Inputs: Vector, Center, Amount
Output: Vector

Purpose¶

Twists the input coordinate field around a chosen center. This is useful for Goo Engine style swirls, distorted UVs, and radial deformations.

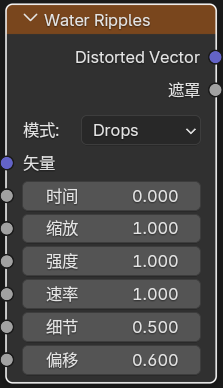

Water Ripples¶

Entry¶

Add > Texture > Water Ripples

Inputs / Outputs¶

Inputs: Vector, Time, Scale, Intensity, Speed, Detail, Bias
Outputs: Distorted Vector, Mask

Panel Options¶

Mode
Drops
Ripples
Flow
Caustic

Purpose¶

Generates procedural ripple distortion and a ripple mask.

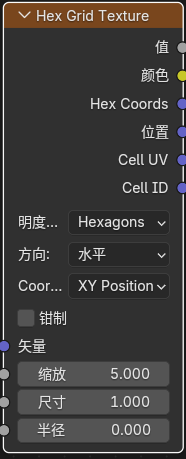

Hex Grid Texture¶

Entry¶

Add > Texture > Hex Grid Texture

Inputs¶

Vector
Scale
Size
Radius
Roundness

Outputs¶

Value
Color
Hex Coords
Position
Cell UV
Cell ID

Panel Options¶

Coordinate Mode
XY Position
Hex Position
Value Mode
Hexagons
SDF Hexagons
Dots
Direction
Horizontal
Vertical
Horizontal Tiled
Vertical Tiled
Clamp

Purpose¶

Generates a hex-grid texture that can be used for honeycomb patterns, cell partitioning, SDF masks, and hex-coordinate based lookups.

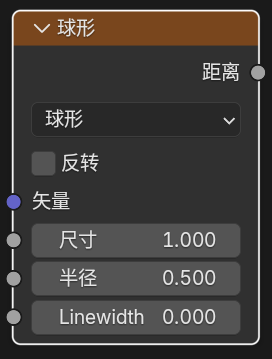

SDF Primitive¶

Entry¶

Add > Texture > SDF Primitive

Output¶

Distance

Purpose¶

Generates signed-distance-field base shapes directly inside material nodes.

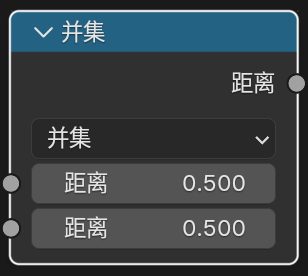

SDF Operator¶

Entry¶

Add > Converter > SDF Operator

Output¶

Distance

Purpose¶

Combines, trims, and reshapes one or two SDF distance fields.

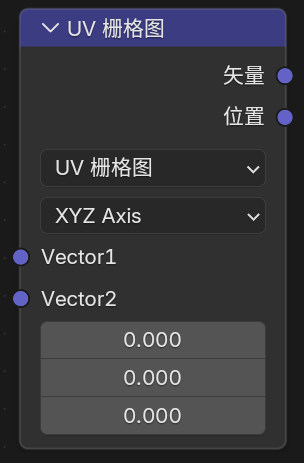

SDF Vector Operator¶

Entry¶

Add > Utilities > Vector > SDF Vector Operator

Outputs¶

Vector
Position
Value

Purpose¶

Preprocesses coordinate, UV, or vector domains before they are fed into SDF Primitive.

4. Goo Engine / NPR-Oriented Input Nodes¶

Bevel¶

Entry¶

Add > Input > Bevel

Inputs / Outputs¶

Inputs: Radius, Normal
Output: Normal

Purpose¶

Generates an approximate beveled normal in Eevee so hard edges can look smoother.

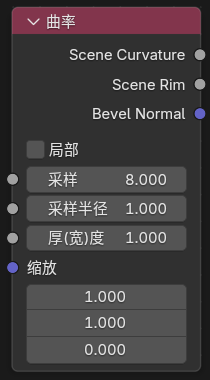

Curvature¶

Entry¶

Add > Input > Curvature

Inputs¶

Samples
Sample Radius
Thickness
Scale

Outputs¶

Scene Curvature
Scene Rim

Panel Options¶

Local
Sample Radius
Pixel
View

Notes¶

Local tries to keep the evaluation focused on the current object
In Pixel mode, Sample Radius is interpreted in pixels and therefore changes with render resolution
In View mode, Sample Radius is interpreted relative to the view, which helps keep rim width more consistent between viewport and final render

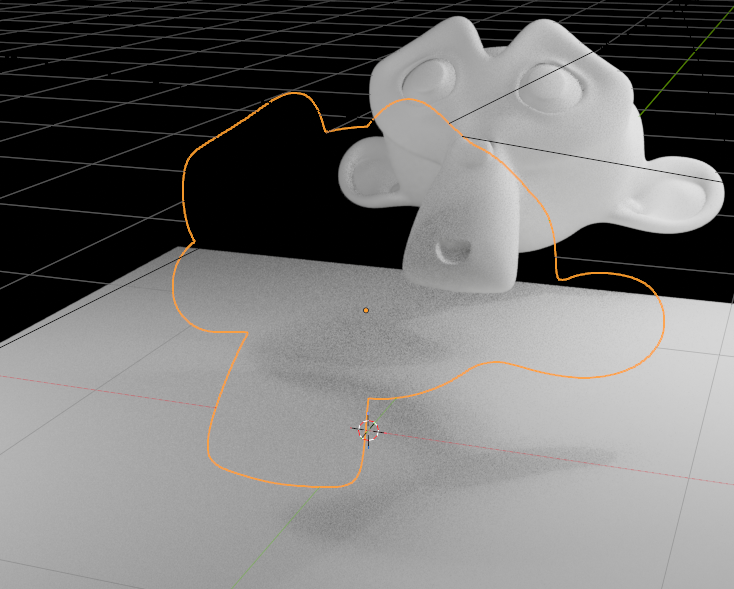

This is still a screen-space node, so the result depends on camera view, resolution, and sampling radius

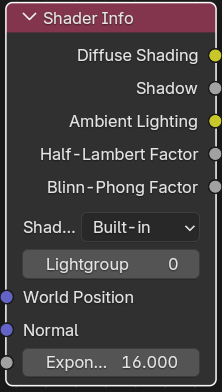

Shader Info¶

Entry¶

Add > Input > Shader Info

Inputs¶

World Position
Normal
Exponent

Outputs¶

Diffuse Shading
Shadow
Ambient Lighting
Half-Lambert Factor
Blinn-Phong Factor

Meaning of Each Output¶

Diffuse Shading: the summed Lambert diffuse term from valid lights, clamped to 0-1
Shadow: switchable shadow evaluation output
Ambient Lighting: probe / environment indirect-light contribution
Half-Lambert Factor: summed half-Lambert diffuse term, clamped to 0-1
Blinn-Phong Factor: averaged Blinn-Phong highlight factor weighted by each light's specular channel, clamped to 0-1

Notes¶

Shadow Mode
Built-in
Soft Filtered
Soft Filtered samples a local neighborhood around the current surface to rebuild smoother gray penumbra from Eevee's dithered black/white shadow result
Blinn-Phong Factor does not automatically include shadow; multiply it with Shadow when needed
Exponent controls highlight sharpness and defaults to 16
The node panel includes a Lightgroup control
Only lights with the same Lightgroup ID participate in this Shader Info node
World-sun style interference is excluded from these direct-light outputs

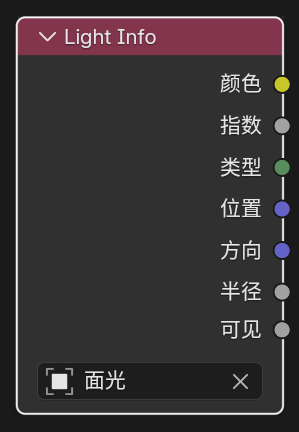

Light Info¶

Entry¶

Add > Input > Light Info

Feature Description¶

Reads information from a selected light.

Fixed Outputs¶

Color
Power
Type

Type is an integer socket with the following values:

-1: no light assigned
0: Point
1: Sun
2: Spot
3: Area

Outputs That Appear by Light Type¶

Position
Direction
Radius
Spot Size
Sun Angle

Current behavior depends on the selected light type:

Point: Position, Radius
Sun: Direction, Sun Angle
Spot: Position, Direction, Radius, Spot Size
Area: Position, Direction, Radius

Notes¶

For per-light processing, use For Each Light in the NPR Tree

Light Shader Info / Light Shader Output¶

Entry¶

Use these nodes in an Eevee Light Shader node tree:

Add > Input > Light Shader Info
Add > Output > Light Shader Output

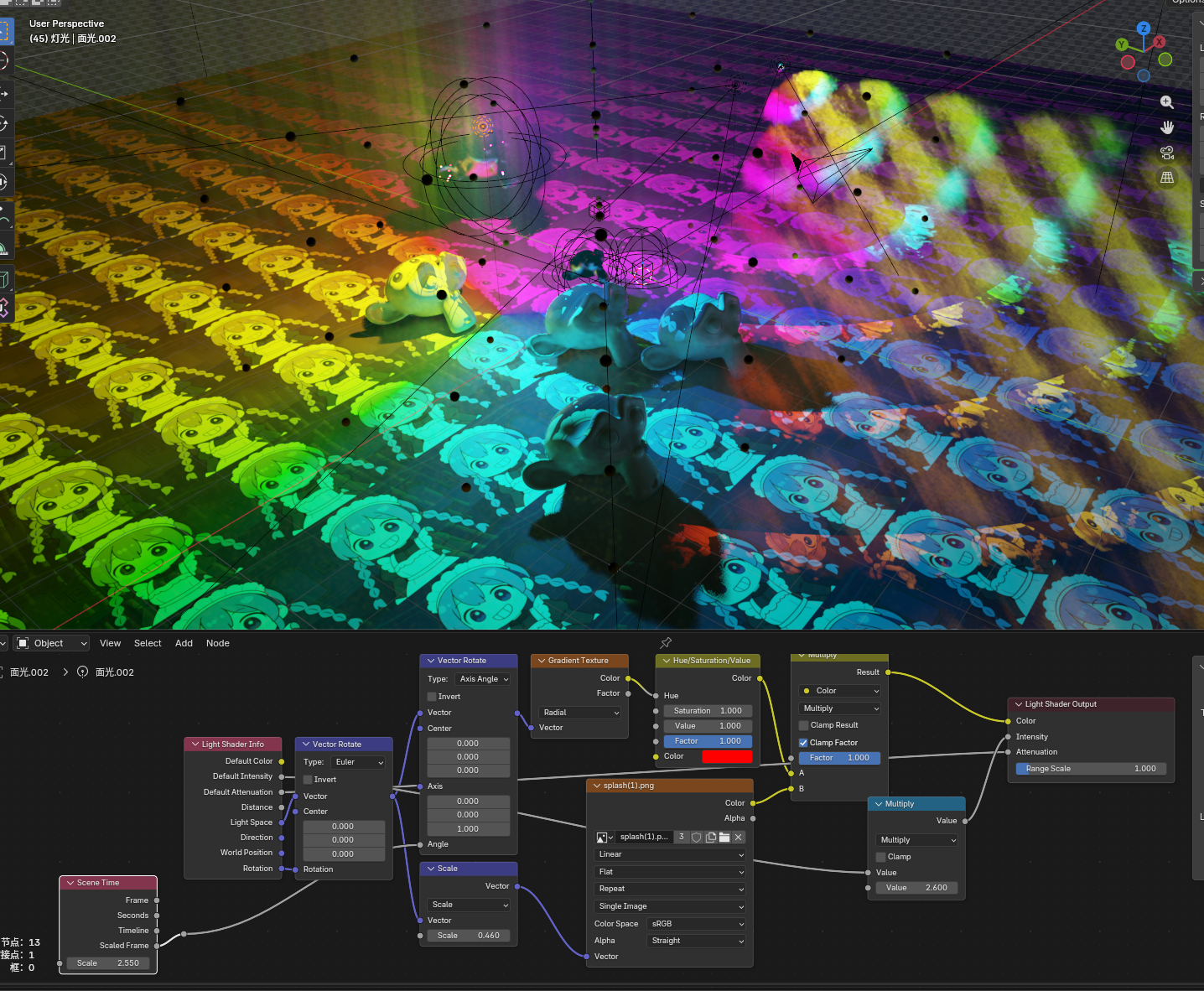

Feature Description¶

Light Shader Output lets a single Eevee light output custom direct-light color, intensity, and attenuation. It is used only in light node trees, not as a regular object material output.

_{Light Shader Info and Light Shader Output in a light node tree}

Light Shader Info Outputs¶

Default Color
Default Intensity
Default Attenuation
Distance
Light Space
Direction
World Position
Rotation

These outputs expose the current light's default data at the evaluated sample point and are meant as source inputs for custom light shaders.

Light Shader Output Inputs and Settings¶

Color: output light color
Intensity: non-negative multiplier applied to Color
Attenuation: non-negative value written to the Light Shader cache alpha channel
Range Scale: scales the Eevee light influence radius used for culling and shadow usage; 1 keeps the original light range

The written Light Shader result has this meaning:

vec4(Color.rgb * max(Intensity, 0.0), max(Attenuation, 0.0))

Behavior¶

Lights without a custom Light Shader output keep normal Eevee lighting behavior
The Light Shader result participates in the connected Eevee direct-light paths, including surface, deferred / NPR, forward, volume, and probe capture paths
In Surface material paths, GLSL Function glsl_light_get(i) reads the evaluated Light Shader color and attenuation
GLSL Function applies the Light Shader result only to diffuse_color, specular_color, and attenuation; light type, position, direction, distance, and lightgroup_id remain raw light data
Volume, probe bake, and surfel paths can use Light Shader Output for Eevee lighting, but they do not extend the public GLSL Function light-helper semantics

_{Example effect of Light Shader Output on light color and attenuation}

5. Built-In Node Enhancements¶

OKLab Color Ramp¶

Entry¶

Add > Color > OKLab Color Ramp

Purpose¶

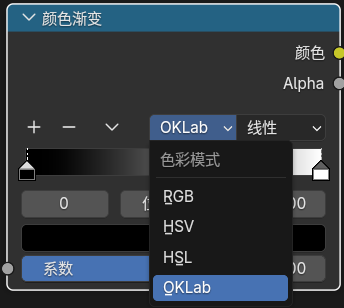

The standalone OKLab Color Ramp node always evaluates the ramp in the OKLab color space, giving more stable and perceptually smoother color transitions.

Notes¶

Regular Color Ramp keeps the existing RGB / HSV / HSL workflow
OKLab Color Ramp uses the same input, output, and stop-editing workflow as regular Color Ramp
Older files saved as Color Ramp + OKLab mode are migrated back to the standalone OKLab Color Ramp node when opened
The node is available in Shader, Geometry, Compositor, and Eevee Light Shader supported node trees

Extended Shader Nodes¶

1. Filter-Domain Nodes¶

Filter Object Info¶

Entry¶

Purpose¶

Node Setting¶

Outputs¶

Notes¶

Filter Mask¶

Entry¶

Purpose¶

Output¶

Panel Options¶

Notes¶

Scene Color¶

Entry¶

Purpose¶

Inputs / Outputs¶

Notes¶

2. General Eevee Utility Nodes¶

Render Info¶

Entry¶

Outputs¶

Purpose¶

Notes¶

Scene Time¶

Entry¶

Input¶

Outputs¶

Purpose¶

Screen Derivative¶

Entry¶

Feature¶

Portal In / Portal Out¶

Entry¶

Feature Description¶

Notes¶

3. Eevee Object Material Nodes¶

Outline Control¶

Entry¶

Inputs¶

Purpose¶

Basic Workflow¶

Notes¶

Suggested Images¶

Render Texture¶

Entry¶

Purpose¶

Inputs / Outputs¶

Screenspace Info¶

Entry¶

Inputs / Outputs¶

Purpose¶

Usage Notes¶

World Environment¶

Entry¶

Inputs / Outputs¶

Purpose¶

Notes¶

Light Probe Color¶

Entry¶

Inputs / Outputs¶

Purpose¶

World To Tangent¶

Entry¶

Inputs / Outputs¶

Purpose¶

Notes¶

GLSL Function¶

Entry¶

Purpose¶

Basic Workflow¶

Example Project¶

Supported Boundary Types¶

Important Notes¶

Example: Parameter Meta with Descriptions and Panels¶

Example: mode Debug Mapping¶

Example: Filter by lightgroup_id¶

Example: PBR-Style Direct Light + Ambient Light¶

GLSL Script Expression¶

Example: `mode` Debug Mapping¶

Example: Filter by `lightgroup_id`¶
