Interface and Workflow Additions

1. Eevee Performance

Purpose

Shows Eevee viewport / final-render performance statistics, stage breakdowns, and hints directly in the Outliner, making it easier to locate heavy parts of the pipeline.

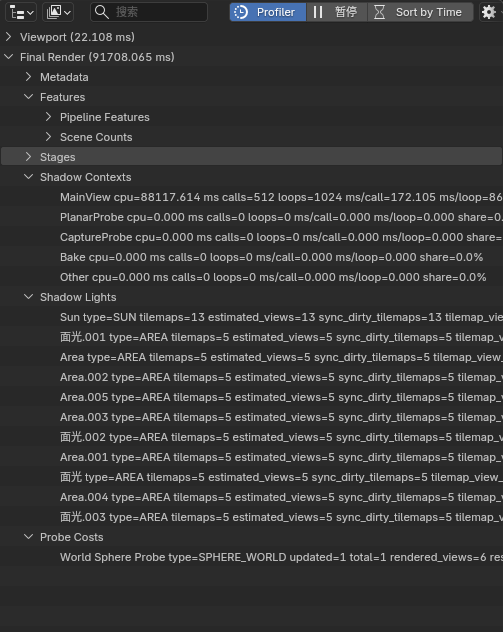

Eevee Performance shadow and probe attribution

Entry

  • Outliner > Display Mode > Eevee Performance
  • Profiler / Pause / Sort by Time in the Outliner header
  • The Eevee Performance popover in the Outliner header

Behavior

  • Enabling Profiler starts collecting performance statistics and displays them in the Outliner
  • Pause freezes live updates so the current result can be inspected
  • Sort by Time sorts the stage list by CPU cost instead of fixed pipeline order
  • Average Window sets the frame window used for smoothing statistics
  • The tree currently includes groups such as Viewport, Final Render, Metadata, Features, Stages, Shadow Contexts, Shadow Lights, Probe Costs, and Hints

Shadow and Probe Attribution

  • Shadow Contexts breaks shadow CPU cost down by render context, such as MainView, PlanarProbe, CaptureProbe, Bake, and Other
  • Shadow Contexts shows cpu, calls, loops, ms/call, ms/loop, and share, making it easier to tell whether shadow cost comes from the main view, probe updates, baking, or other paths
  • Shadow Lights lists shadow tilemap load per light, including type, tilemaps, estimated_views, sync_dirty_tilemaps, tilemap_view_share, and level
  • Probe Costs lists per-probe update cost, including updated, total, rendered_views, resolution, estimated_work, work_share, and level
  • These groups are attribution aids, not a per-GPU-draw-call profiler; sorting and shares are meant for hotspot discovery, and exact values change with viewport state, sampling, and probe update frequency

Current Scope

  • This is mainly a CPU-side Eevee stage profiler and hint view, not a full GPU profiler
  • It is meaningful only for Eevee, not for Cycles

2. Material Selector Previews

Purpose

Controls whether material previews are rendered in material drop-downs and search lists.

This is mainly useful when many materials exist and expanding the selector would otherwise trigger too many preview renders.

Entry

Edit > Preferences > Editing > Objects > Materials > Material Selector Previews

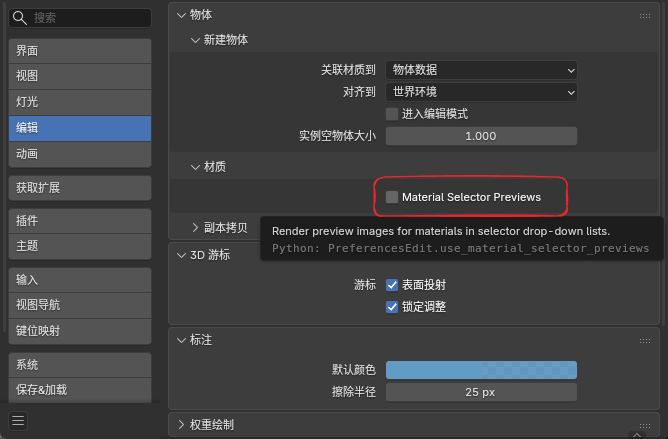

Material Selector Previews

Behavior

  • When enabled: the selector shows material previews as usual
  • When disabled: the selector falls back to normal material icons and no longer triggers preview renders in the drop-down list
  • Default value: enabled

Current Scope

  • When disabled, this prevents material selectors, material drop-down / search lists, and automatic material preview panels from starting new material preview renders
  • Disabling the option also clears running material preview jobs so old preview renders do not keep occupying Eevee
  • Does not affect the 3D Viewport Material Preview / Rendered shading modes
  • Does not affect the actual material render result

3. Material Face Culling

Purpose

Adds clearer face-culling control for materials. In addition to the usual back-face culling, the NPR Port also supports Front culling.

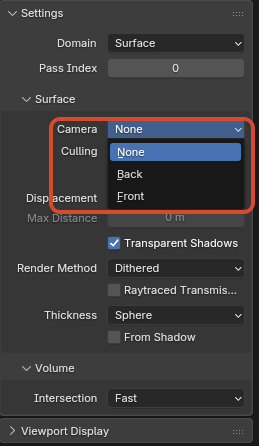

Material Face Culling

Entry

Material Properties > Settings > Culling > Camera

Available Modes

  • None: render both front and back faces
  • Back: hide back-facing faces
  • Front: hide front-facing faces

Notes

  • Front is useful for shell-style effects, inside-view setups, or some inverted-outline style tricks
  • Shadow and Light Probe Volume still keep their own culling controls

4. Material Surface Render State

Purpose

Provides direct Eevee Surface material controls for depth test, color write, depth write, and stencil test / write state. These are useful for masks, portals, special outline layers, hidden writer materials, and other effects that need explicit render-state control.

Entry

Material Properties > Settings > Surface

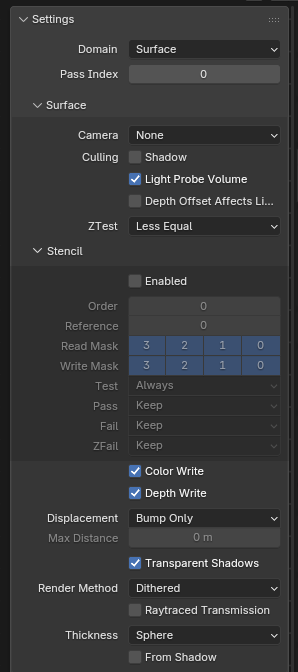

Material surface render-state controls
ZTest, Stencil, Color Write, and Depth Write in Material Properties > Settings > Surface

ZTest

ZTest controls how a fragment compares against the stored depth:

  • Less
  • Greater
  • Less Equal
  • Greater Equal
  • Equal
  • Not Equal
  • Always
  • Never

The default should usually stay Less Equal. ZTest Never rejects the whole fragment, including stencil writes. For stencil writer materials, usually keep Less Equal and disable Color Write / Depth Write when needed.

Color Write / Depth Write

  • Color Write: controls whether the Surface material writes Eevee color output
  • Depth Write: controls whether the Surface material writes Eevee depth output

These toggles control writes only; they do not disable node-tree evaluation. Transparent, outline, AOV, and stencil paths should still be interpreted through the current material and pipeline rules.

Stencil

The Stencil panel contains:

  • Enabled
  • Order
  • Reference
  • Read Mask
  • Write Mask
  • Test
  • Pass
  • Fail
  • ZFail

Test options: Always, Never, Equal, Not Equal, Less, Less Equal, Greater, Greater Equal.

Pass / Fail / ZFail options: Keep, Zero, Replace, Increment Clamp, Decrement Clamp, Invert, Increment Wrap, Decrement Wrap.

Notes

  • Order controls submission order inside the Eevee stencil pass; lower values are submitted first
  • Reference, Read Mask, and Write Mask currently use a 4-bit user stencil range
  • A common writer setup enables Stencil, uses Pass = Replace, and disables Color Write / Depth Write
  • A common reader setup enables Stencil, uses Test = Equal or Not Equal, and matches the same Reference / mask combination
  • If one material both participates in depth occlusion and writes stencil, check the ZTest and Depth Write combination carefully so fragments are not rejected before stencil writes happen
  • To inspect the stencil buffer in the viewport, choose Stencil Value from Viewport Shading > Render Pass

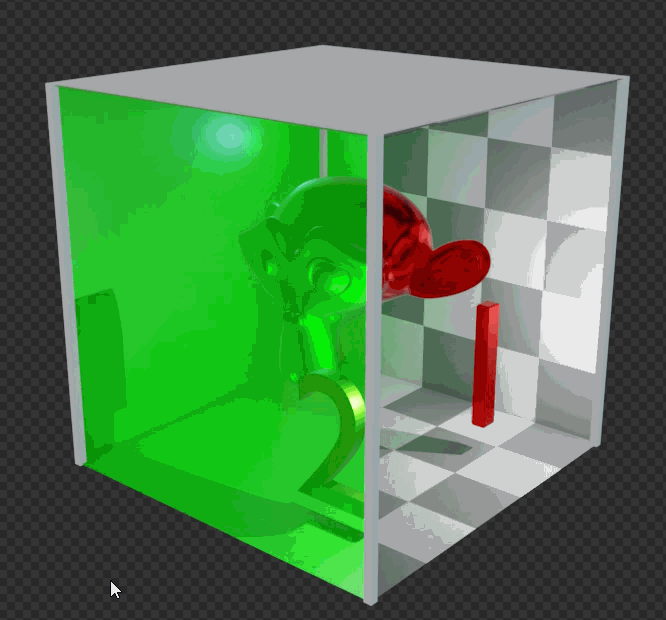

Material stencil example
Stencil writer and reader mask example

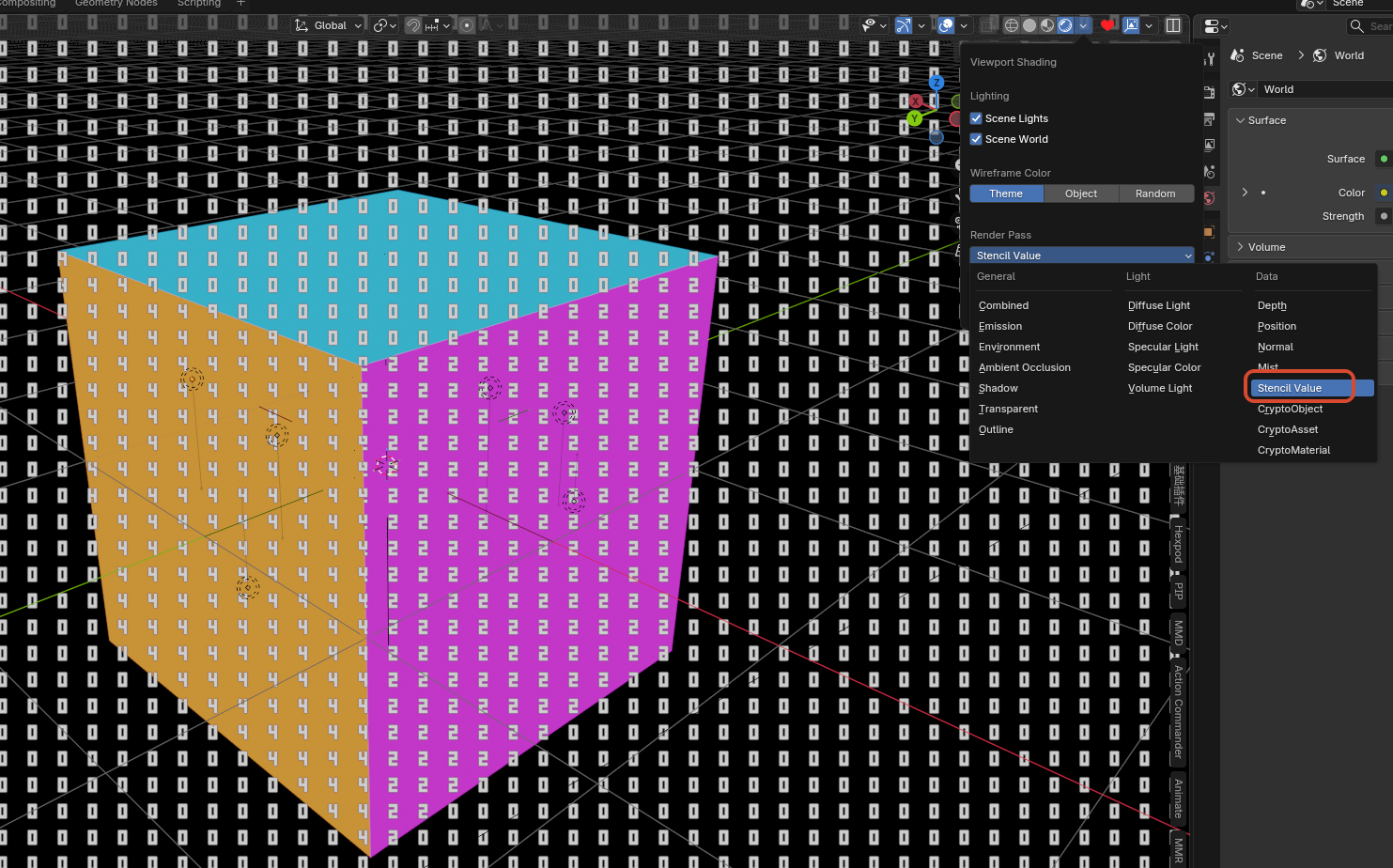

Viewport stencil value preview
Previewing stencil values with Viewport Shading > Stencil Value

5. Eevee Lightgroup ID

Purpose

Assigns an integer light-group ID to Eevee lights so the Shader Info node and GLSL Function GLSLLight.lightgroup_id can filter direct-light evaluation by group.

Entry

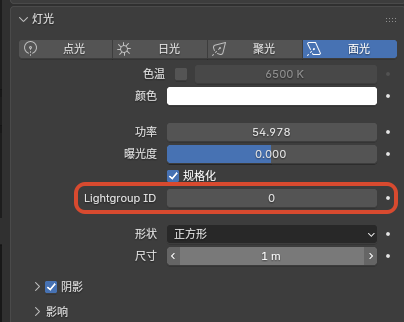

Light Data > Light > Lightgroup ID

Behavior

  • Default value: 0
  • When Shader Info also uses Lightgroup = 0, only lights with Lightgroup ID = 0 are evaluated
  • If a Shader Info node uses another integer value, only lights with the same ID are included
  • In GLSL Function, glsl_light_get(i).lightgroup_id returns this integer and can be used for custom per-light include / exclude logic
  • This grouping does not automatically modify the default Eevee material lighting path; it only affects Shader Info or custom GLSL Function logic that explicitly uses it

6. Sun Shadow Map Scale

Purpose

Adds a separate coverage-scale control for Eevee Sun shadow maps, making it possible to adjust the coverage range and effective detail distribution of the Sun clipmap shadow.

Entry

Light Data > Shadow > Shadow Map Scale

This option is shown only for Sun lights.

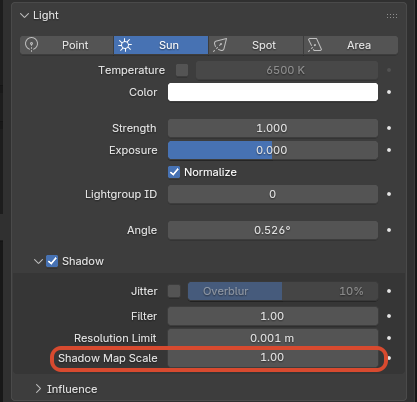

Sun Shadow Map Scale
Shadow Map Scale setting on a Sun light

Behavior

  • Default value: 1
  • Higher values expand the Sun shadow-map coverage scale and usually reduce effective detail per area
  • Lower values concentrate the shadow map into a smaller range and can improve nearby detail, but can expose insufficient coverage or boundary issues more easily
  • This setting affects only Eevee Sun shadow-map sampling / coverage behavior; it does not change light color, energy, direction, or material-side shading

7. Splash Version Tag

Purpose

Appends the current NPR build tag and build date to the version text in the top-right corner of the splash screen, so custom builds are easier to distinguish at a glance.

Current Format

  • version + npr post + build date
  • Example: 5.1.0 npr post 2026-03-27

8. Pose Bone Outliner Visibility

Purpose

Adds a dedicated Outliner visibility flag to each Pose Bone, making it easier to organize complex rigs without changing rig behavior itself.

Entry

  • Bone Properties > Viewport Display > Hide in Outliner
  • Outliner > Filter > Hidden PoseBones

Behavior

  • Every Pose Bone has its own Hide in Outliner toggle
  • The toggle is enabled by default
  • The Hidden PoseBones filter in the Outliner is also enabled by default, so existing rigs do not immediately change appearance
  • After disabling Outliner > Filter > Hidden PoseBones, bones with Hide in Outliner enabled are hidden from the tree
  • If a hidden parent still has visible child bones, those visible children remain in the tree instead of removing the whole hierarchy

Current Scope

  • Affects Pose Bone only
  • Does not affect Edit Bone
  • Changes only the Outliner hierarchy display, not transforms, animation, drivers, or rendering
